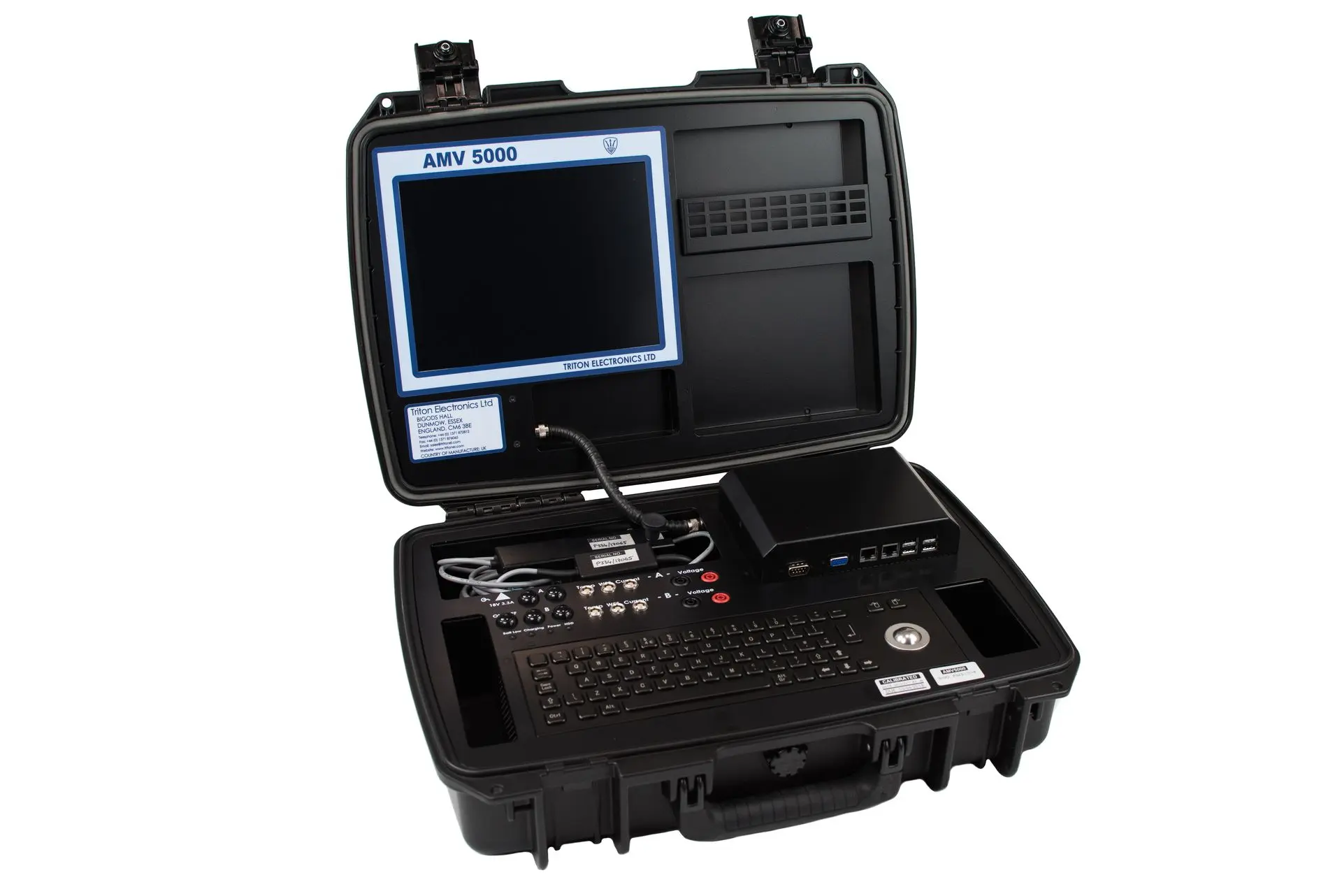

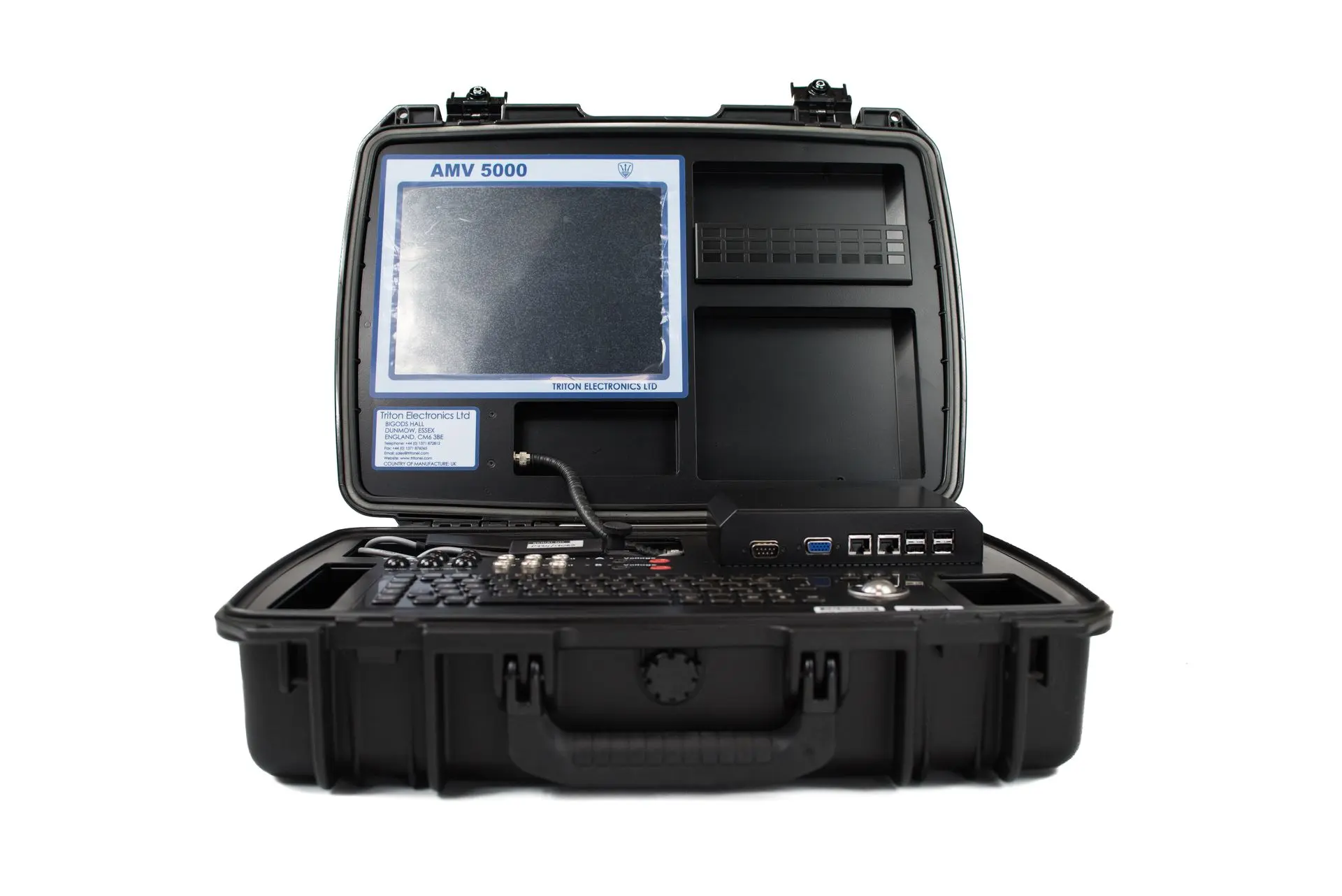

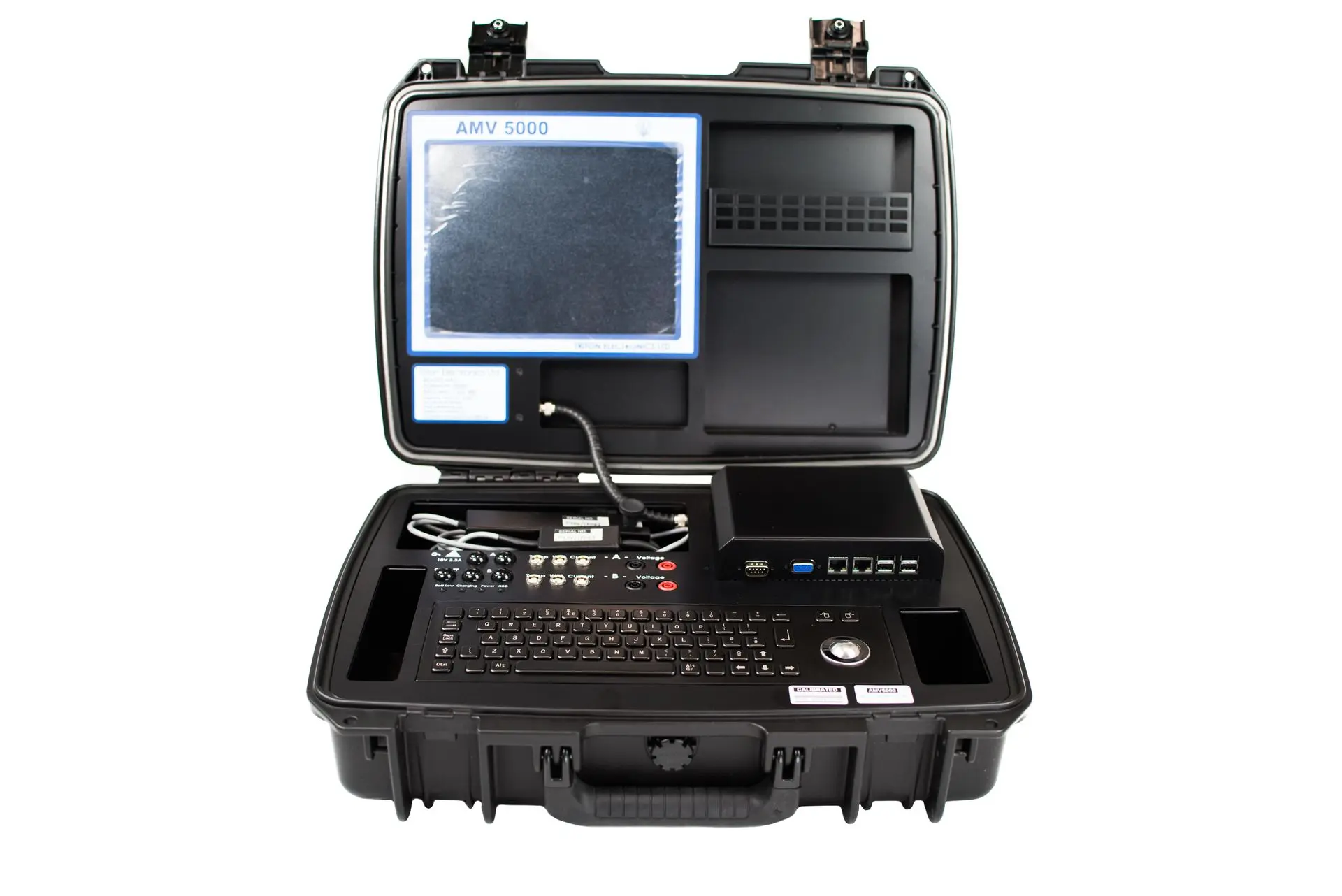

AMV5000 Weldcheck Monitor
Simultaneous monitoring of two welding arcs for pipe and multi-torch applications.
Built for Dual Arc Welding
The AMV5000 enables simultaneous monitoring of two independent welding arcs within a single system.
It is ideally suited to pipe welding and applications where coordinated arc performance must be recorded and verified.
Dual Arc Monitoring
Monitor two welding processes simultaneously within one unit
Synchronized Data Capture
Time-aligned recording of both arcs for accurate comparison
Portable System
Field-ready unit suitable for site and workshop use
Integrated Recording
Built-in data logging and reporting for QA/QC documentation
Applications
The AMV5000 is designed for applications where two welding arcs must be monitored simultaneously.
It is particularly suited to pipe welding, dual-torch operations and scenarios where coordinated arc performance is critical.
- Procedure Qualification (PQR / WPS)
- Welder approval
- Production QA monitoring
- Pipe welding (stovepipe / girth welds)
- Dual torch operations
- Simultaneous welder qualification
- Comparative arc monitoring
Dual Weld Monitoring
Two independent channels
5 kHz per channel (assuming same as 3500 — confirm)
Battery powered
Technical Specifications
Core System
- Channels: 2 independent channels
- Sampling Rate: 5 kHz per channel
- Measurement: Voltage and Current
- Synchronisation: Time-aligned dual-channel recording
Inputs
- Voltage Input Range: 0–100 V
- Current Input Range: 0-1000A
- Auxiliary Inputs for temperature and gas flow
System Features
-
Integrated data logging
- Battery operation
- Portable enclosure
Physical
- Enclosure: Rugged portable case
- Power: Internal battery / mains
- Operating Environment: Site and workshop use
Compatible Welding Processes
- MIG
- TIG (HF protected)
- MMAW (stick welding)
- Plasma
- SAW
See the AMV5000 in Action
Book a short demo to see how the AMV5000 supports weld quality and compliance.
Typical demo time: 15–20 minutes
