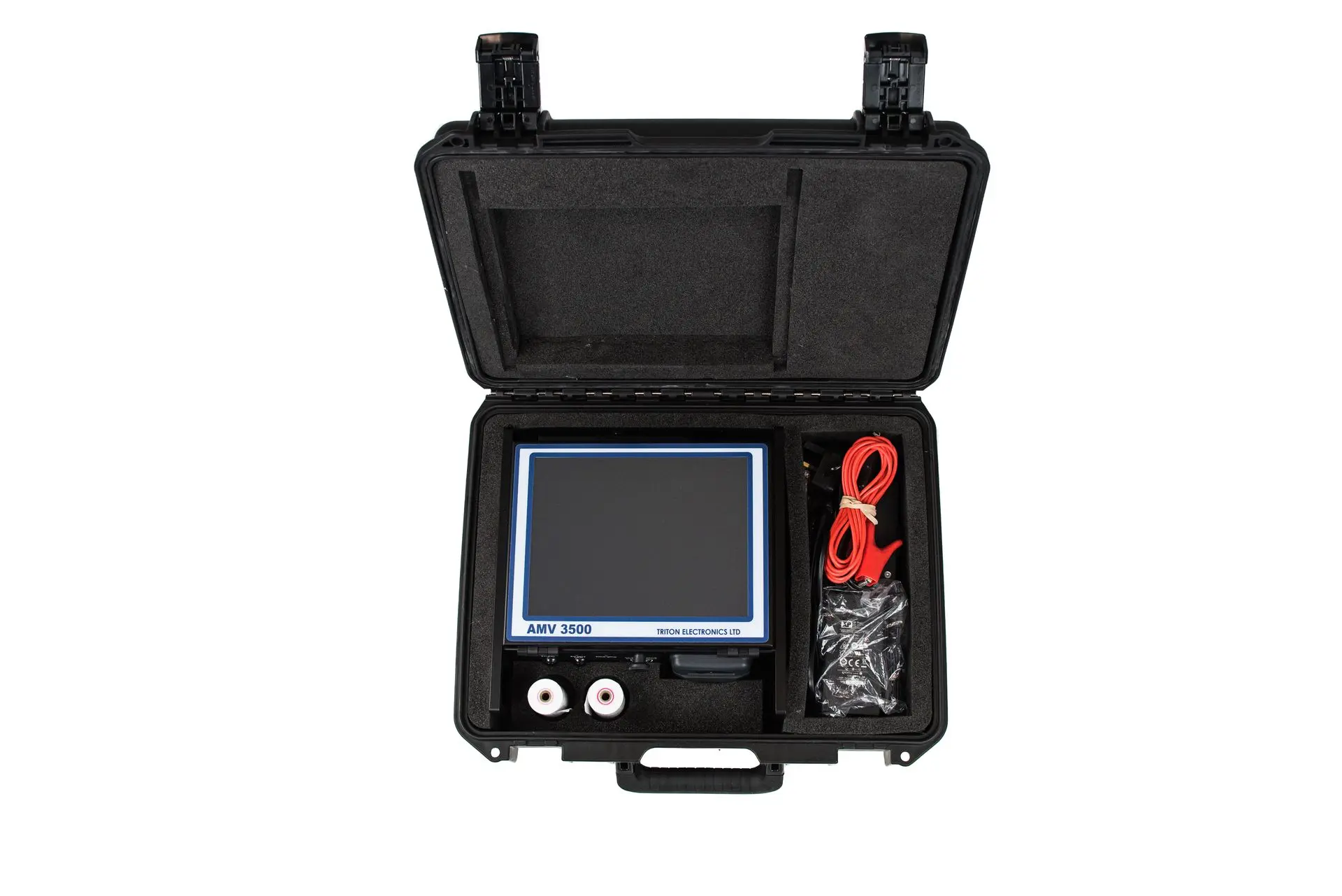

AMV3500 Weldcheck Monitor
Portable weld monitoring for QA/QC, procedure qualification and production traceability.
Built for Real-World Welding QA
The AMV3500 is designed for practical welding environments where portability, reliability and immediate results are critical.
With integrated data acquisition, onboard analysis and a built-in printer, it provides a complete QA/QC solution without the need for external systems.

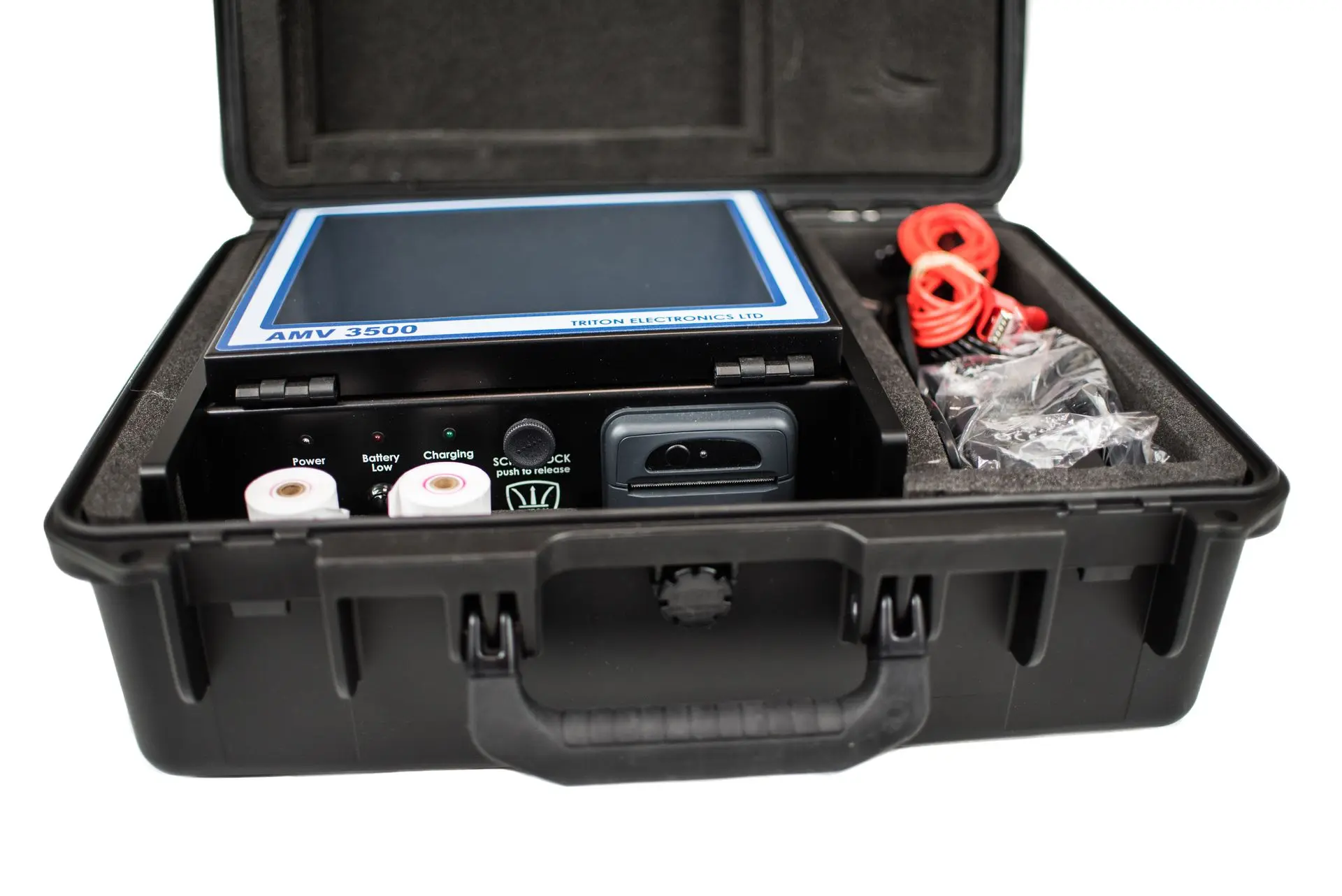

Portable & Self-Contained
Battery powered with integrated printer for site use
5 kHz Sampling per Channel
Optimised for QA/QC and production monitoring
Multi-Parameter Measurement
Voltage, current, wire feed speed and gas flow
Immediate Reporting
Print weld records instantly for traceability
Applications
- Procedure Qualification (PQR / WPS)
- Welder approval
- Production QA monitoring
- Training and validation
- Site welding operations
- Workshop quality control
Simple, Effective Weld Monitoring
The AMV3500 connects directly to the welding process, capturing key parameters in real time.
Data is processed onboard and can be reviewed immediately or printed directly for quality records.
Technical Specifications
Parameter | Specification |
Sampling Rate | 5 kHz per channel |
Screen | 10.4" (800 × 600) |
Storage | 250 GB hard drive |
Operating System | Windows 10 LTSE |
Battery | NiMH ~4 Hours run time |
Weight | 10 kg |
Current Range | 1000A (2000A optional) |
Voltage Range | 100V |
Printer | Integrated |
Compatible Welding Processes
- MIG
- TIG (HF protected)
- MMAW (stick welding)
- Plasma
- SAW
See the AMV3500 in Action
Book a short demo to see how the AMV3500 supports weld quality and compliance.
Typical demo time: 15–20 minutes
